If you want building insulation that combines modern sustainability, excellent thermal and acoustic performance, and installer-friendly handling, Knauf With Ecose Technology is one of the market leaders you should be evaluating. Knauf’s ECOSE® binder is plant-based and low in volatile organic compounds (VOCs), giving products improved environmental credentials and better handling for installers without compromising performance. The Knauf range — including 135mm Knauf, 100mm Knauf, 75mm Knauf, and 50mm Knauf — covers common ceiling and roof applications and is widely used across residential and commercial projects.
This guide examines each key thickness (with at least 600 words per product section), provides detailed specification grids, explains measurable energy savings for heating and cooling, outlines acoustic and fire-safety benefits, covers quality and environmental advantages of ECOSE® binders, and summarizes Knauf Insulation’s manufacturer credentials and awards.
How Knauf With Ecose Technology works — the technical baseline
Knauf Insulation With Ecose Technology is glass mineral wool (glasswool) where the binder — the sticky substance that holds fibers together — is made from plant-based materials rather than traditional phenol-formaldehyde resins. ECOSE® reduces embodied carbon in the binder (and therefore in the product) and has significantly lower VOC emissions during manufacture and installation. The result: a product that behaves like conventional glasswool — high thermal resistance, excellent acoustic absorption, non-combustible — but with improved sustainability credentials and a softer touch for installers.
Beyond the binder, the performance of Knauf Insulation With Ecose Technology depends on fibre geometry, density, and thickness: those variables are why 135mm Knauf Insulation, 100mm Knauf, 75mm Knauf, and 50mm Knauf all have different R-values and acoustic performance. Knauf’s product technical data and distributor sheets provide the measured thermal conductivity (typically around 0.040 W/m·K for the common ceiling products), product R-values, and noise reduction coefficients (NRC) for each thickness.
Knauf Ecose Product Deep-Dives
Below are comprehensive product sections for the thicknesses you required. Each section contains a specification grid, expected performance descriptions, installation notes, and recommended use-cases. I repeat the phrase Knauf Insulation With Ecose Technology across the article as requested.
135mm Knauf Ecose Specifications
Specification Grid — 135mm Knauf with Ecose
| Attribute | Typical Value / Notes |
|---|---|
| Product name | 135mm Knauf Insulation (ECOSE® binder) |
| Thickness | 135 mm |
| Product R-value | 3.38 m²·K/W (manufacturer typical). Installed R may be slightly higher depending on assembly. |
| Thermal conductivity (k) | ≈ 0.040 W/m·K (typical for Knauf ceiling rolls) |
| Coverage per roll | Typical roll sizes 7.5 m × 1.2 m (coverage ~9 m²) — check pack label. |
| Density | Nominal density ~11–12 kg/m³ (product-specific) |
| Acoustic rating (NRC) | ~1.10 (thicker batts show strong sound absorption) |
| Fire classification | Non-combustible; Euroclass A1 / SANS classifications (check TDS). |
| Binder | ECOSE® Technology (plant-based, low VOC). |
| Typical uses | Ceiling insulation, retrofits, high-performance thermal separation |
Why choose 135mm Knauf with Ecose?
135mm Knauf Ceiling Insulation is the top-of-the-range thickness in common ceiling rolls and is chosen when thermal performance and acoustic absorption are both priorities. The 135mm thickness translates into leading R-values for ceiling cavities — the higher R-value directly reduces imposed heating and cooling loads on HVAC systems. For homeowners serious about long-term energy savings, the incremental cost of going to 135mm from 100mm typically pays off in lower energy bills and improved comfort in both winter and summer months.
Knauf’s ECOSE® binder means 135mm Insulation isn’t just about performance — it’s also about reduced embodied carbon in the binder itself and lower installer irritation during cutting. That softer handling attribute matters on large roof jobs where time and worker fatigue add costs.
Thermal performance and energy savings
A 135mm layer of Knauf Ecose Technology reduces conduction through the roof and drops peak temperatures in living areas. In cooling-dominated climates, this reduces the number of hours an air conditioner runs; in heating-dominated seasons it reduces heating hours. Real-world energy reductions vary with building fabric, glazing area, and occupant behavior, but typical retrofit results show double-digit percentage savings in annual HVAC use when upgrading from uninsulated or very thin layers to 135mm. Combining 135mm thickness with reflective roofing and proper ventilation can magnify savings.
Acoustic benefits
Thicker fibers and greater thickness give 135mm Insulation strong absorption across mid and higher frequencies and better low-frequency performance than thinner products. That reduces reverberation and airborne sound transmission from external sources (traffic, neighbors) and internal impact noise. For homes where quietness is a priority, 135mm is an excellent ceiling choice.
Fire safety and regulatory compliance
Knauf Ecose Insulation retains the non-combustible classification typical of glass mineral wool. The product will not sustain combustion or contribute to flame spread in the event of a fire — but remember, fire safety is a system property: roof membranes, eaves, and penetrations must meet building regulations. Knauf’s datasheets and SANS/EN certificates should be kept on file for compliance and inspections.

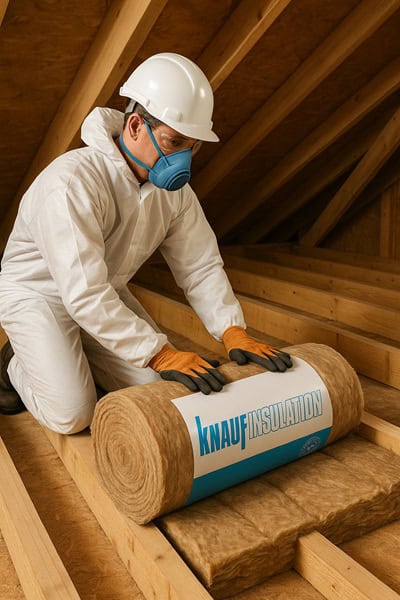

Installation notes and best practice
- Do not compress: compressing 135mm into a shallower cavity reduces its R-value and undermines performance. If your joist depth is less than 135mm, select an appropriate product.
- Vapor control: follow the manufacturer’s guidance for vapor barriers and roof ventilation to prevent condensation issues.
- Handling & PPE: despite ECOSE®’s improved feel, use gloves, long sleeves and dust masks when cutting. Maintain site hygiene to limit irritation exposure.
Typical projects for Knauf Insulation
- High-performance new builds in climates with significant heating and cooling demand.
- Retrofits where the owner wants the maximum thermal and acoustic return without resizing the roof assembly.
- Installations demanding the reassurance of a recognised brand and modern binder technology (ECOSE®).
Summary: if your aim is maximum ceiling R-value for the typical product family, 135mm Knauf Insulation provides strong energy and acoustic benefits while carrying the ECOSE® sustainability advantage.
2) 100mm Knauf Ecose— full technical and practical profile
Specification Grid — 100mm Knauf Ecose
| Attribute | Typical Value / Notes |
|---|---|
| Product name | 100mm Knauf (ECOSE® Technology) |
| Thickness | 100 mm |
| Product R-value | 2.50 m²·K/W (manufacturer typical) — installed R may be slightly higher. c |
| Thermal conductivity (k) | ≈ 0.040 W/m·K |
| Coverage per roll | Typical roll sizes 10.10 m × 1.2 m (coverage varies). |
| Density | Nominal ~11 kg/m³ |
| Acoustic rating (NRC) | ~1.04 (effective mid-frequency absorption) |
| Fire classification | Non-combustible — Euroclass A1 / SANS class. |
| Binder | ECOSE® plant-based binder. |
| Typical uses | Standard residential ceiling insulation; retrofit top-ups; moderate acoustic control. |
Why choose 100mm Knauf?
100mm Knauf is the widely recommended balance of cost, thermal performance and acoustic benefit. If you’re comparing choices, 100mm is the common recommendation for most South African homes that require definite energy savings and comfort improvement without the extra bulk of 135mm. The 100mm Knauf roll fits many standard joist depths and is simpler to install than thicker materials in constrained roofs.
Energy savings and thermal behaviour
Switching from no insulation to 100mm Knauf yields substantial reductions in heat transfer and sensible savings in heating and cooling. The product R-value of 2.50 m²·K/W is a significant barrier against both winter heat loss and summer heat gain. Where a homeowner has new double-glazed windows but an uninsulated ceiling, upgrading to 100mm Knauf is often the most cost-effective way to reduce HVAC runtime. Combine 100mm Knauf with reflective roof finishes, and you multiply the thermal impact.
Acoustic and comfort benefits
100mm Knauf noticeably improves interior acoustic comfort, smoothing room reverberation and reducing airborne noise. For multi-room houses or properties with an upper floor, the 100mm batt reduces noise transfer more effectively than 50mm and is a good compromise between performance and cost.
Installation tips
- Cutting: a serrated insulation knife and a straight edge make precise cuts easier. Measure and cut to length; compressing the roll between joists reduces life performance.
- Handling: ECOSE® reduces binder smell and provides softer handling, but PPE is still required during cutting. Knauf
- Retrofit notes: if you add 100mm Knauf into an existing roof with a partial layer, ensure you don’t create thermal bridges and that venting is adequate.
Typical use-cases for 100mm Knauf Ecose
- Most new residential ceilings where joist depth is standard.
- Retrofits seeking clear energy savings without structural work.
- Rooms where improved acoustic comfort is desired but deep cavities are not available.
Summary: 100mm Knauf pairs the performance homeowners want with the economics and ease-of-installation most contractors prefer — and the ECOSE® binder gives environmental and installer comfort advantages on top of the standard glasswool benefits.
3) 75mm Knauf Ecose— full technical and practical profile
Specification Grid — 75mm Knauf
| Attribute | Typical Value / Notes |
|---|---|
| Product name | 75mm Knauf (ECOSE® Technology) |
| Thickness | 75 mm |
| Product R-value | Typical R-value ~1.88–1.90 m²·K/W (confirm on TDS). |
| Thermal conductivity (k) | ≈ 0.040 W/m·K |
| Coverage per roll | Varies by pack length (check local distributor). |
| Density | Nominal ~11 kg/m³ |
| Acoustic rating (NRC) | Good mid-frequency absorption for thin cavities |
| Fire classification | Non-combustible; check datasheet for certification. |
| Binder | ECOSE® plant-based binder. Knauf |
| Typical uses | Top-ups, shallow joists, partition walls, vehicle enclosures. |
Why choose 75mm Knauf With Ecose Technology?
75mm Knauf With Ecose Technology is commonly used where joist depth or ceiling construction limits thicker insulation but some thermal and acoustic improvement is required. It’s a compromise product: significantly better than 50mm but less bulky than 100mm or 135mm. 75mm Knauf is particularly helpful in retrofit situations where adding a thicker product would require structural alteration.
Thermal performance & energy impact
Although thinner, 75mm Knauf with Ecose Technology still slows heat flow and helps reduce peak indoor temperatures, improving occupant comfort and reducing short-duration HVAC peaks. The energy savings will be smaller than 100mm or 135mm installations, but in many cases 75mm Knauf is the most practical way to correct a gross lack of insulation without invasive works.
Acoustic characteristics
At 75mm, Knauf Insulation With Ecose Technology provides sensible acoustic damping for airborne sounds and contributes to lower reverberation times. It is not the ideal choice where heavy impact noise reduction is required, but it provides a meaningful improvement compared to no insulation.
Installation and handling
- Fitting: 75mm fits in many intermediate joist depths and is easier to handle than thicker rolls.
- PPE: use gloves and masks during cutting — ECOSE® improves feel but not the need for protection.
Use-cases
- Homes with moderate ceiling cavity depths where a substantial upgrade is still desired.
- Partitions where acoustic improvement is required without deep cavities.
- Garages and workshops where 75mm Knauf Ceiling Insulation is a practical, cost-effective thermal barrier.
Summary: 75mm Knauf Ecose Technology is the pragmatic middle choice when neither 50mm nor 100mm fits the project constraints: it brings notable thermal and acoustic benefits without the bulk.
4) 50mm Knauf Ecose— full technical and practical profile
Specification Grid — 50mm Knauf Ecose Insulation
| Attribute | Typical Value / Notes |
|---|---|
| Product name | 50mm Knauf (ECOSE® Technology) |
| Thickness | 50 mm |
| Product R-value | ≈ 1.14–1.25 m²·K/W (typical; check TDS). |
| Thermal conductivity (k) | ≈ 0.040 W/m·K |
| Coverage per roll | Varies (larger roll lengths often used for thinner batts). |
| Density | Nominal ~11 kg/m³ |
| Acoustic rating (NRC) | Limited but useful for reverberation control |
| Fire classification | Non-combustible; confirm with product datasheet. |
| Binder | ECOSE® (plant-based). Knauf |
| Typical uses | Top-ups, shallow cavities, partition lining, garages. |
Why choose 50mm Knauf with Ecose?
50mm Knauf with Ecose is the minimum practical layer where space is limited. It’s widely used for top-ups or where joist depth is restricted. While it won’t deliver the energy reductions of thicker products, 50mm still provides a worthwhile improvement in occupant comfort and will reduce some peak heat transfer. For many outbuildings, garages, or shallow ceilings, 50mm Knauf is the only realistic choice.
Energy savings and expectations
Expect modest savings from 50mm Knauf. It reduces conduction but should be paired with other measures (roof ventilation, reflective sheeting, shading) for meaningful impact in hot climates. Where budget is constrained and only a small gap can be filled, 50mm is a valid, low-cost improvement.
Acoustic and installation notes
A 50mm layer reduces reverberation and provides a small amount of airborne sound damping — enough to improve perceived quality in spaces like workshops or internal offices. Installation is straightforward; cut to fit and avoid compressing the product too much, even in shallower cavities.
Use-cases
- Shallow joist retrofits or top-ups where thicker batts are impossible.
- Non-critical thermal improvement in garages and outbuildings.
- Partition linings for low-cost acoustic absorption.
Summary: 50mm Knauf is the entry-level, space-conscious option in the Knauf range — still carrying the ECOSE® sustainability benefit but intended for constrained applications.
Fire rating, acoustic, thermal & quality benefits — a consolidated view
Fire rating benefits
Knauf Ecose Insulation products made with glasswool are non-combustible and typically satisfy Euroclass A1 classifications and relevant SANS/EN standards for mineral wool insulation. That means the product itself does not feed a fire and has minimal contribution to flame spread — an important attribute where building regulation compliance and occupant safety are essential. Keep the product TDS and certificates on file for inspections.
Acoustic benefits
Across thicknesses, Knauf With Ecose Technology provides strong sound absorption thanks to the open-fibre structure and resilient form. Thicker products (100mm, 135mm) give much better low-frequency performance and higher NRCs. For interior comfort and noise control, upgrading to 100mm or 135mm is highly recommended where budget and cavity depth permit.
Thermal benefits & energy savings
The R-values quoted for 135mm Knauf Insulation (≈3.38), 100mm Knauf (≈2.50), 75mm Knauf with Ecose (≈1.9) and 50mm Knauf (≈1.14) translate into measurable reductions in conduction through ceilings. Upgrading an uninsulated ceiling to 100–135mm commonly yields significant reductions in HVAC runtime and costs. The precise savings depend on climate zone, building fabric and occupant behavior, but site studies and manufacturer guidance consistently show energy savings and comfort improvements for thicker, correctly installed layers.
Quality & sustainability benefits (ECOSE®)
Knauf Insulation With Ecose Technology reduces embodied carbon in the binder and removes phenol-formaldehyde resin taste/odor issues. ECOSE® uses rapidly renewable raw materials and delivers lower VOC emissions and improved installer experience. Knauf has published lifecycle and sustainability data showing ECOSE®-enabled products have lower environmental impacts than equivalent products using traditional binders.
Manufacturer background and awards
Knauf Ecose Insulation — who they are
Knauf Insulation is part of the Knauf Group, a global, family-owned building-materials manufacturer active in insulation, gypsum, and other building systems. Knauf Insulation develops glass mineral wool and other insulation products worldwide and has invested heavily in product R&D, low embodied carbon binders (ECOSE®), and manufacturing modernization. The company supplies building, industrial and acoustic insulation solutions across continents.
Awards & recognition
Knauf Insulation has received multiple awards for innovation, sustainability and plant performance:
- Greenbuild Leadership Award (USGBC) in recognition of sustainability leadership.
- Global Innovation Awards for products such as Performance+ and other product lines in recent years.
- Recognition in regional awards (Energy Efficiency awards, Global Insulation Awards) for plant and innovation excellence. Knauf Insulation also won multiple categories in the Global Insulation Awards (e.g., plant, product and leadership awards). These recognitions underline Knauf’s continuing product development and industry leadership.
Installation checklist & best practices
- Choose the right thickness: prefer 100mm Knauf for standard projects, 135mm Knauf Insulation where maximum thermal/acoustic performance is required. Use 75mm Knauf or 50mm Knauf for shallow or constrained cavities.
- Do not compress: compression reduces R-value. Fit to full thickness in cavity depth.
- PPE: gloves, long sleeves and a P2/P3 mask when cutting — ECOSE® improves feel but protection remains necessary.
- Avoid moisture: wet insulation loses performance and may grow mould if contaminated. Protect packs on site.
- Document compliance: keep TDS and certificates for fire classification, R-values and environmental claims.
Frequently Asked Questions (short)
Q: Is Knauf Insulation With Ecose Technology safe?
A: Yes. ECOSE® is a plant-based binder that reduces VOCs and embodied carbon. Glasswool insulation is addressed in WHO/IARC documents which do not classify typical insulation glasswool as a human carcinogen; standard PPE and good site practices are advised.
Q: Which thickness should I pick?
A: For most homes: 100mm Knauf. For best results: 135mm Knauf Insulation where joist depth and budget allow. Use 75mm Knauf or 50mm Knauf where depth is limited.
Q: Will ECOSE® affect performance?
A: No — ECOSE® is a binder choice. The thermal and acoustic performance comes from the glass fibers, thickness and density. ECOSE® reduces environmental impact and improves handling.
Closing summary & buying advice
Knauf Insulation With Ecose Technology is a mature, well-documented product family that pairs proven glasswool performance with a modern, low-VOC binder. For most residential projects, 100mm Knauf is the practical choice; where the highest thermal and acoustic performance is required choose 135mm Knauf Insulation. Use 75mm Knauf and 50mm Knauf for constrained cavities or top-ups. Always buy from authorised distributors, keep datasheets, and follow installation guidance to preserve performance and regulatory compliance. Knauf’s awards and sustainability credentials further support the brand’s position as an industry leader.
