Few upgrades transform a home or building as effectively as Thermal Ceilings. In South Africa’s demanding climate — from the hot summers of the Western Cape to the cold winters inland — a well-insulated ceiling is the difference between energy waste and true indoor comfort.
The Benefits of Thermal Ceilings extend far beyond keeping a room warm or cool. They cut electricity bills, reduce condensation, and improve the lifespan of the structure. Two leading names dominate this field locally: Summit XPS Thermal Ceilings and Isoboard Thermal Ceilings.
This guide explores how Thermal Ceilings work, compares each type and thickness, and explains why combining XPS boards with Knauf or Aerolite Ceiling Insulation produces the ultimate performance for modern South African homes.
What Are Thermal Ceilings and How Do They Work?
Thermal Ceilings are rigid, closed-cell boards made primarily from Extruded Polystyrene (XPS). They form the visible ceiling surface while simultaneously acting as the insulation layer. The closed-cell structure traps millions of air pockets, resisting heat transfer through conduction and radiation.
In summer, the ceiling reflects and slows down incoming heat from the roof cavity. In winter, it prevents indoor warmth from escaping through the roof. Because XPS boards create a continuous, joint-sealed thermal break, there are no cold or hot spots, ensuring even temperature distribution throughout the space.
Composition and Technology Behind XPS Thermal Ceilings
XPS is produced by extruding polystyrene resin under controlled heat and pressure, forming a dense, moisture-resistant, closed-cell panel. This gives Summit XPS and Isoboard their superior strength, water resistance, and long-term R-value stability.
Unlike expanded polystyrene (EPS), XPS has lower water absorption (< 1 %), meaning it will not sag, rot, or lose performance when exposed to humidity. This property is one of the key Benefits of Thermal Ceilings in coastal regions such as Cape Town and Durban.
Types of Thermal Ceilings
The South African market primarily offers two premium products: Summit XPS Thermal Ceilings and Isoboard Thermal Ceilings. Both deliver high R-values, elegant finishes, and compliance with SANS 10400-XA energy-efficiency regulations.

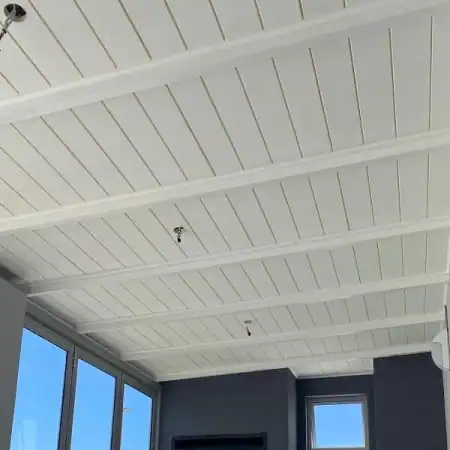

Summit XPS Thermal Ceilings
Summit XPS Thermal Ceilings are engineered for long-term performance in residential, commercial, and industrial applications. Each panel is lightweight, dimensionally stable, and designed for direct fixing to ceiling brandering or suspension systems.
Technical Specifications
| Thickness | Approx R-Value | Thermal Conductivity (W/m·K) | Water Absorption | NRC | Fire Rating |
|---|---|---|---|---|---|
| 30 mm | R 1.05 | 0.028 | < 1 % | 0.05 | B/B 1/2 |
| 40 mm | R 1.40 | 0.028 | < 1 % | 0.05 | B/B 1/2 |
| 50 mm | R 1.75 | 0.028 | < 1 % | 0.05 | B/B 1/2 |
| 80 mm | R 2.80 | 0.028 | < 1 % | 0.05 | B/B 1/2 |
30mm Summit XPS Ceilings
Ideal for moderate climates and renovation projects where ceiling height is limited. It provides a cost-effective balance between energy savings and affordability.
40mm Summit XPS Ceilings
The most common choice for new residential builds. It delivers excellent Benefits of Thermal Ceilings by maintaining stable indoor temperatures in both summer and winter.
50mm Summit XPS Ceilings
Preferred in colder inland regions. Offers a noticeable drop in energy consumption and more consistent comfort levels.
80mm Summit XPS Ceilings
The premium solution for maximum energy efficiency. Perfect for luxury homes, offices, or properties aiming for Net-Zero Energy Building standards.
Key Features and Benefits
- Very low water absorption (< 1 %)
- High compressive strength – resists cracking
- Lightweight – easy to install
- Smooth, paintable surface for aesthetic finishes
- Excellent long-term R-value stability
- Environmentally friendly, CFC-free production
- Resistant to mould and mildew
- Fire-retardant and self-extinguishing
- Long lifespan (30 + years)
- Low NRC (≈ 0.05) — must be combined with acoustic insulation for sound control
This final point is crucial: Summit XPS Thermal Ceilings alone do not absorb sound. To block or dampen noise, add Aerolite or Knauf Insulation above the ceiling. The combination provides both temperature regulation and soundproofing — a dual system that enhances the total Benefits of Thermal Ceilings.
Isoboard Thermal Ceilings
Isoboard Thermal Ceilings are another top-tier XPS product made in South Africa. They feature an ultra-smooth, white surface finish and are widely used in residential housing, offices, and retail environments.
Specifications
| Thickness | R-Value | Thermal Conductivity | Water Absorption | NRC | Fire Rating |
|---|---|---|---|---|---|
| 30mm | R 1.05 | 0.028 | < 1 % | 0.05 | B/B 1/2 |
| 40mm | R 1.40 | 0.028 | < 1 % | 0.05 | B/B 1/2 |
| 50mm | R 1.75 | 0.028 | < 1 % | 0.05 | B/B 1/2 |
| 80mm | R 2.80 | 0.028 | < 1 % | 0.05 | B/B 1/2 |
30mm Isoboard
Perfect for standard domestic ceilings where budget and headroom are limited but energy efficiency is still important.
40mm Isoboard
The most popular size in the range — ideal for suburban homes, providing year-round comfort and reliable insulation performance.
50mm Isoboard
Designed for colder environments or energy-efficient buildings. Offers significant reduction in heating costs.
80mm Isoboard
The flagship product — maximum thermal insulation and a superior polished finish suitable for showrooms, hospitals, and commercial spaces.
Installation Options
- Under Trusses (Standard Ceiling): Fixed directly to brandering.
- Over Purlin Systems: Installed under roof sheeting to block heat before it enters the roof cavity.
- Between Rafters: Used for exposed beam or vaulted ceilings.
- Wall Applications: Provides internal wall insulation and smooth decorative surface.
Key Benefits
- Consistent thermal performance
- Minimal maintenance and no sagging
- Clean, modern aesthetic
- Low NRC — combine with Aerolite or Knauf for noise control
- Excellent water resistance
- Easy to cut and install
- Fire-retardant safety rating
- Long life span with stable R-values
- Supports SANS 10400-XA compliance
- Enhances resale value and energy rating
Comparing Summit XPS and Isoboard Thermal Ceilings
| Feature | Summit XPS | Isoboard |
|---|---|---|
| Material | Extruded Polystyrene (XPS) | Extruded Polystyrene (XPS) |
| Thermal Conductivity | 0.028 W/m·K | 0.028 W/m·K |
| R-Values | R 1.05 – 2.80 | R 1.05 – 2.80 |
| Water Absorption | < 1 % | < 1 % |
| NRC | ~ 0.05 | ~ 0.05 |
| Fire Rating | B/B 1/2 | B/B 1/2 |
| Finish | Fine texture paintable | Smooth high-finish surface |
| Price Range | Generally more affordable | Slightly higher premium |
| Use Case | Performance & cost balance | High-end aesthetic projects |
In short: Summit XPS Ceilings excel in value and durability, while Isoboard Thermal Ceilings are often chosen where aesthetic appearance is a top priority.
The Acoustic Factor — Combining Thermal and Sound Insulation
One limitation of XPS boards is their low Noise Reduction Coefficient (NRC). An NRC of 0.05 means only 5 % of sound energy is absorbed — essentially none. In open-plan homes, offices, or classrooms, this can lead to echo and noise pollution.

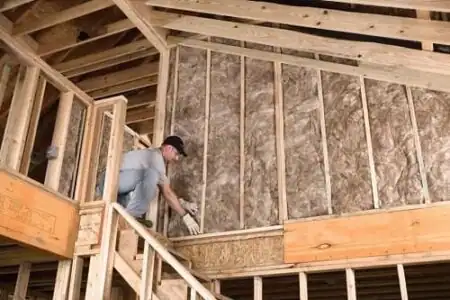

To counter this, professional installers always recommend adding a soft fiber insulation layer above the ceiling:
- 135 mm Knauf Insulation (Ecose Technology, NRC ≈ 1.15)
- 135 mm Aerolite Insulation (NRC ≈ 1.10)
This combination transforms the ceiling into both a thermal barrier and a sound absorber. The result: cooler summers, warmer winters, and peaceful interiors — one of the most valuable Benefits of Thermal Ceilings.
Moisture Resistance and Longevity
Traditional gypsum ceilings absorb moisture and can deform over time, particularly near the coast. XPS Thermal Ceilings have a water absorption rate of less than 1 %, making them virtually waterproof.
This prevents:
- Ceiling stains from condensation
- Mould growth in humid roof spaces
- Deformation after roof leaks
For homeowners in regions like Cape Town or Durban, this moisture resistance is a major Benefit of Thermal Ceilings, extending their life beyond 30 years.
Energy Savings and Return on Investment
A properly installed Thermal Ceiling can reduce heating and cooling costs by 25–35 %. When combined with Aerolite or Knauf Insulation, savings can reach 40 %.
Example Calculation:
A home consuming 2 000 kWh/month for climate control at R2.50/kWh spends R5 000 monthly. Installing Thermal Ceilings can save R1 250–R1 750 per month. With a typical installation cost of R25 000 – R30 000, the payback period is around 18 months to 2 years — a textbook case of measurable Benefits of Thermal Ceilings.
Aesthetic Appeal and Finishing Options
Both Summit XPS and Isoboard Ceilings can be painted or jointed for a seamless architectural finish. Popular finishes include:
- V-Joint Boards: Traditional tongue-and-groove look.
- Square-Edge Boards: Modern, minimal design.
- Plastered Finish: For luxury interiors.
- Exposed-Beam Look: Boards installed between rafters for high-volume spaces.
These options make Thermal Ceilings not just functional, but a defining visual feature of the home.
Installation and Maintenance
Installation Guidelines:
- Fix directly to brandering or trusses with screws and adhesive.
- Stagger joints and seal with compatible jointing compound.
- Allow 2–3 mm expansion gap per board length.
- Paint with PVA or acrylic paint for UV protection.
- Add Aerolite or Knauf Insulation above for acoustics.
Maintenance:
Simply repaint every 7–10 years. No sagging, no cracking, and no water damage. One of the most durable Benefits of Thermal Ceilings is their minimal upkeep.
Environmental and Health Advantages
Both Summit and Isoboard Thermal Ceilings are manufactured without CFCs or HCFCs and are completely recyclable. They do not release fibres or dust into the air, making them safe for asthma and allergy sufferers.
When combined with Knauf Insulation with ECOSE Technology, you gain a fully eco-friendly ceiling system with zero formaldehyde binders and indoor air quality certifications such as the Eurofins Gold Clean Air Award.
Top 10 Benefits of Thermal Ceilings (Recap)
- Exceptional Thermal Insulation – Maintain comfortable indoor temperatures.
- Energy Savings – Reduce electricity use by 25–40 %.
- Water Resistance – Ideal for humid and coastal areas.
- Long-Term Durability – No sagging or crumbling over decades.
- Aesthetic Versatility – Multiple finish options for any style.
- Low Maintenance – Simple to clean and repaint.
- Fire Retardant – Self-extinguishing safety performance.
- Environmentally Friendly – CFC-free and recyclable.
- Health and Air Quality Improvement – No fibres, no toxic off-gassing.
- Acoustic Control (when combined with insulation) – Enjoy peace and quiet indoors.
These ten points summarize the core Benefits of Thermal Ceilings, demonstrating why they are an essential part of energy-efficient building design.
Conclusion
Whether you choose Summit XPS or Isoboard, the Benefits of Thermal Ceilings are clear: remarkable energy savings, comfort, moisture protection, and long-term value. When combined with Aerolite or Knauf Insulation, they become a complete thermal and acoustic system that meets and often exceeds SANS standards for South African homes.
For homeowners, builders, and architects seeking a cost-effective way to boost comfort and property value, installing a Thermal Ceiling is one of the smartest investments you can make.
